Injection Machinery Tie Bar Strain Measurement Gauge Overview
Tie bar strain measurement gauge is designed to accurately detect the strain on tie bars in real - time during the injection molding process. By continuously monitoring this data, it helps prevent tie bar breakage, ensures consistent product quality, and optimizes machine operation, reducing downtime and maintenance costs.
Benefit of Tie Bar Strain Gauge

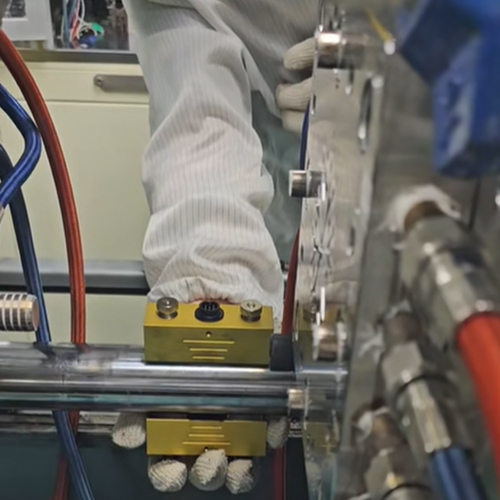

Ø Easy installation without additional equipment
Ø Real-time monitorin g with timely feedback
Ø Pre-caution and prevent tie bar broken
Ø Improve injection processing
Ø Better product appearance
Technical Parameter
Operation Temperature | 0-55°C |
Measuring Range | μe ± 500 |
Accuracy | <1% F.S |
Sensors | 4 sets of magnetic sensors |
Sensor Sensitivity | 1.0 mv/v @ F.S |
Hysteresis | 0.5% F.S |
Resistance | 350Ω |
Magnetic Force | 2x380N |

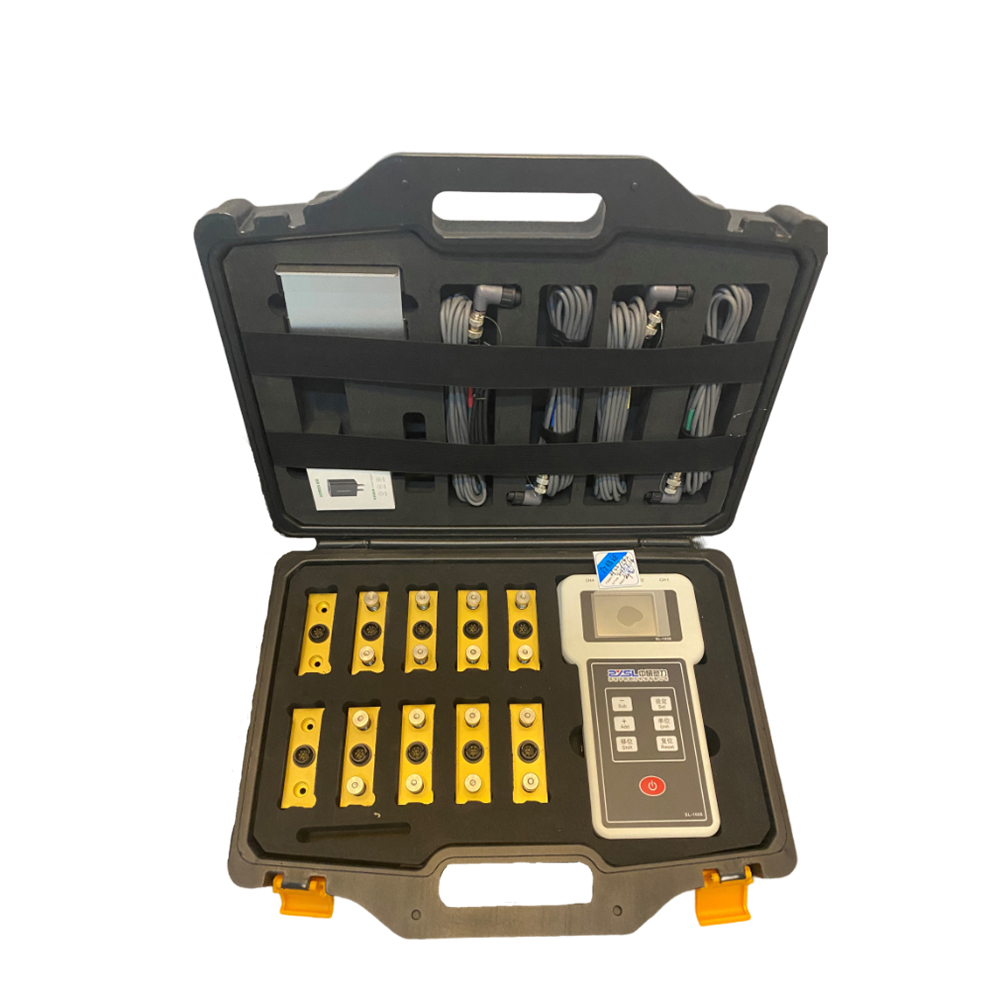

Kit Configuration

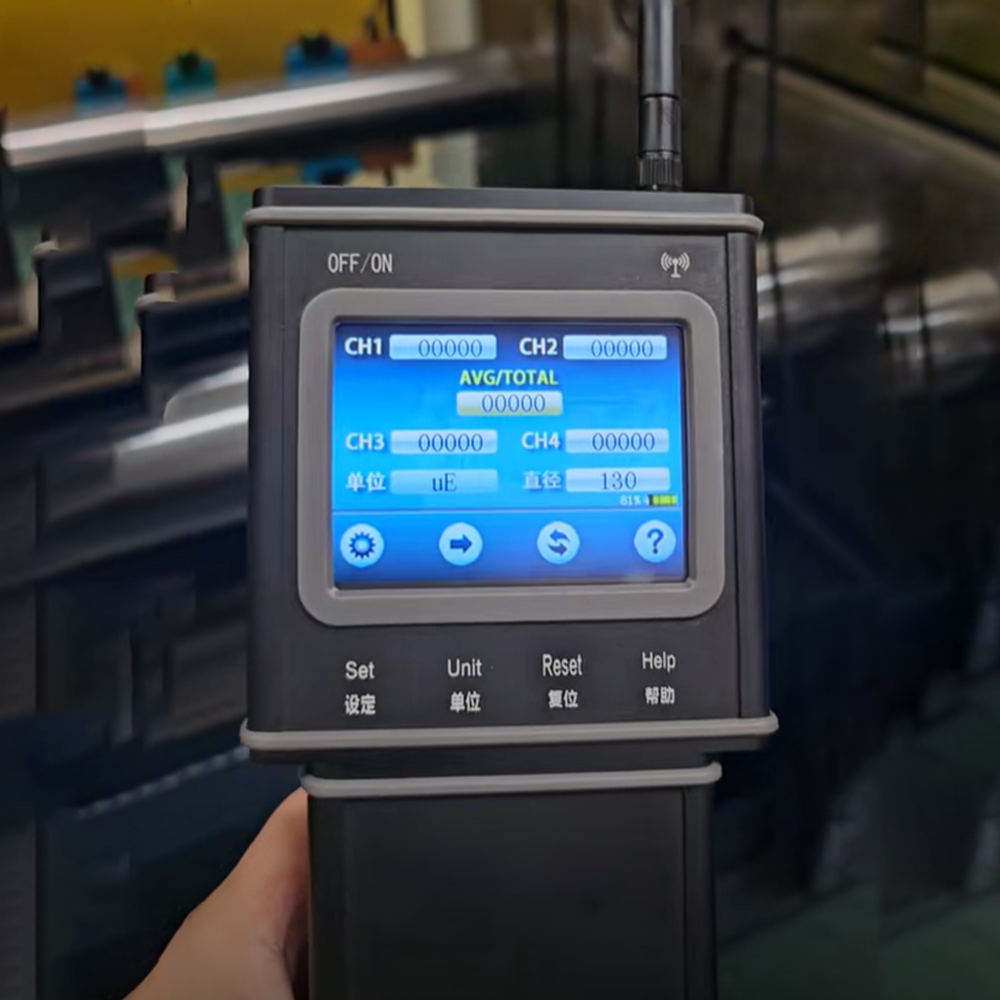

- One touch - sensitive LCD display
- Four sets of sensors & one spare set
- Four sensor communication lines
- One portable aluminum carrying case
- One power cord
- One battery charger
- One labor - saving wrench
- One instruction manual
